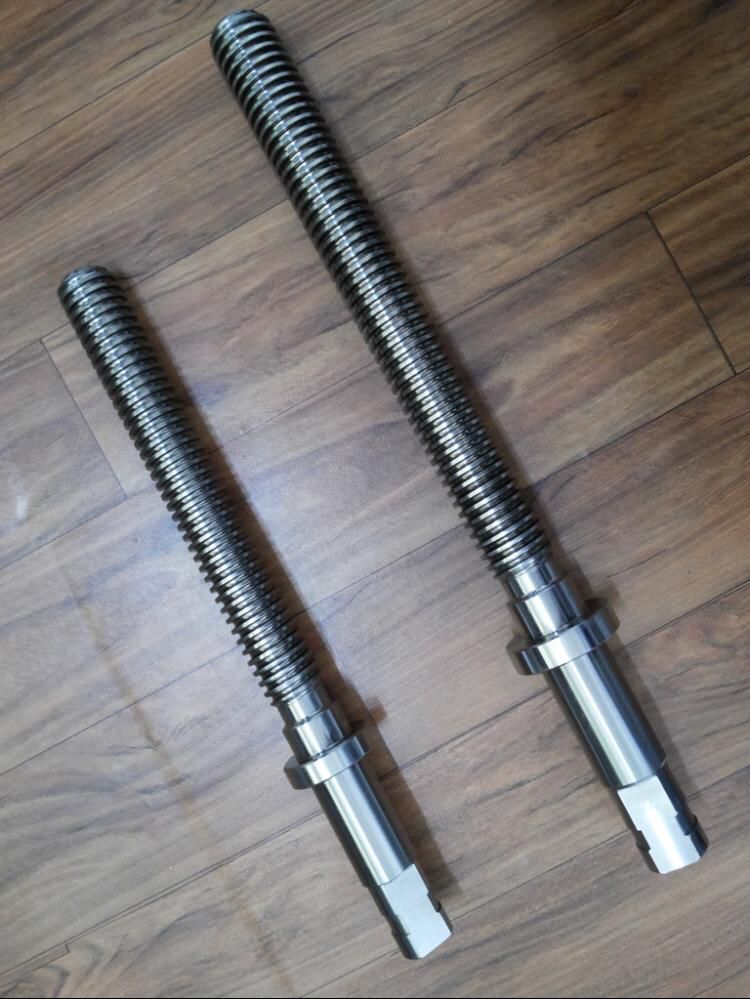

Trapezoidal leadscrew

Trapezoidal leadscrew Specification

Surface Treatment
Ground or rolled, as specified

Corrosion Protection
Optional (corrosion resistant coatings available)

Material
High-quality carbon steel, stainless steel, or bronze

Type
Trapezoidal Leadscrew

Quality Level
Standard or precision grade (as per ISO/metric standards)

Head Shape Type
Plain, with hex or square ends (based on requirement)

Head Size
Standard or custom (varies by application)

Screw Size
M8 to M60 (available in various diameters and pitches)

Finish
Bright, Black Oxide or Zinc plated

Operating Temperature
-20C to +200C (depends on material and finish)

Pitch
2 mm to 8 mm (custom pitches available)

RoHS Compliance
Available upon request

Application
Actuators, CNC machinery, lead screw assemblies, linear motion systems

Lead Accuracy
Up to 0.05 mm/300 mm

Tensile Strength
Typically 600 - 1200 MPa (material dependent)

Thread Direction
Right-hand or left-hand

Lubrication Requirement
Lubrication recommended for extended life and performance

Thread Type
Trapezoidal (metric trapezoidal profile, ISO 2904/DIN 103)

Length
Up to 6 meters or as per customer requirements

Trapezoidal leadscrew Trade Information

Minimum Order Quantity
1 Number

Delivery Time
7 Days

About Trapezoidal leadscrew

A trapezoidal leadscrew is a high-performance power transmission component designed with a trapezoidal thread profile that ensures efficient load handling, reduced wear, and reliable motion control. It is commonly used in applications where precise linear movement and high load capacity are essential.

Manufactured using high-grade materials such as alloy steel, carbon steel, or stainless steel, trapezoidal leadscrews offer excellent strength, corrosion resistance, and long service life. The unique trapezoidal thread geometry provides better load distribution compared to square threads, making it ideal for heavy-duty and industrial applications.

These leadscrews are compatible with matching trapezoidal nuts (bronze, plastic, or cast iron), ensuring smooth and low-friction movement. They are available in various diameters, pitches, and lengths to suit customized application requirements.

Robust Material Quality and Finish

Trapezoidal leadscrews are crafted from premium carbon steel, stainless steel, or bronze to guarantee strength and longevity in demanding environments. Customers can select from bright, black oxide, or zinc-plated finishes, plus optional corrosion-resistant coatings for added durability. Ground or rolled surface treatments further enhance performance, making these leadscrews suitable for both standard and precision-grade applications.

Custom Configurations for Versatile Applications

With a variety of thread directions, pitches, and lengths-including custom options-the trapezoidal leadscrews meet precise linear motion needs. Available screw sizes range from M8 to M60, with standard or custom head shapes to fit unique applications. These features make the leadscrews well-suited for actuators, CNC machines, and lead screw assemblies across industries.

Precision and Performance Assured

Each leadscrew delivers up to 0.05 mm/300 mm lead accuracy, making them ideal for applications where smooth, consistent motion is essential. Lubrication is recommended for optimal performance and service life, and the operating temperature ranges from -20C to +200C, depending on material and finish.

FAQ's of Trapezoidal leadscrew:

Q: How do I select the right trapezoidal leadscrew for my application?

A: Choosing the correct leadscrew depends on your required thread type, pitch, length, and material. Consider factors like operating temperature, load requirements, and the environment. Our leadscrews come in various diameters (M8-M60), custom lengths up to 6 meters, and can be finished or coated for corrosion resistance.

Q: What is the difference between ground and rolled surface treatments?

A: A ground surface treatment provides a smoother and more precise lead accuracy, suitable for high-precision applications. Rolled threads are generally more cost-effective and suitable for standard-grade applications where minimal lead variation retains consistent performance.

Q: When should lubrication be applied to these leadscrews?

A: Lubrication is recommended regularly to enhance the leadscrew's life and efficiency. It is especially crucial in applications with high loads or frequent movement to reduce friction and prevent wear.

Q: Where are trapezoidal leadscrews typically used?

A: They are commonly employed in actuators, CNC machinery, linear motion assemblies, and various industrial automation systems, thanks to their efficient power transmission and adaptability across many applications.

Q: What are the benefits of using metric trapezoidal profile leadscrews?

A: Metric trapezoidal profiles according to ISO 2904/DIN 103 offer high load-carrying capacity, smooth movement, and compatibility with industry standards. Their versatility makes them a preferred choice for customizable and reliable linear motion solutions.

Q: How does the lead accuracy impact system performance?

A: Higher lead accuracy-up to 0.05 mm per 300 mm-minimizes backlash and ensures consistent, precise motion in applications requiring tight tolerances, such as CNC machinery and position-critical actuators.

Q: Are RoHS-compliant and corrosion-resistant options available?

A: Yes, RoHS compliance and additional corrosion protection coatings can be provided as per customer request, ensuring environmental safety and extended performance in harsh conditions.
