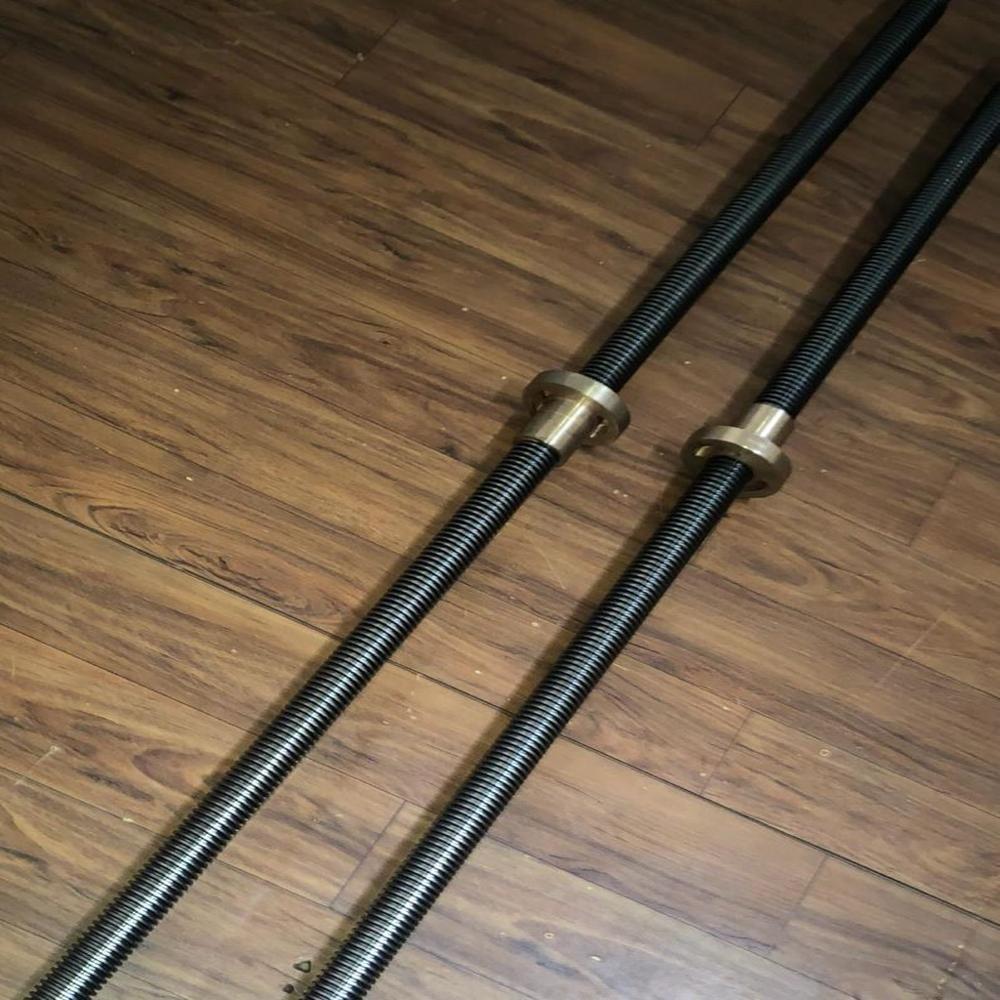

Acme leadscrew

Acme leadscrew Specification

Surface Treatment
Galvanized

Corrosion Protection
Yes

Material
Mild Steel

Type
Acme Threaded Leadscrew

Quality Level
Premium

Head Shape Type
Round

Head Size
25 mm

Screw Size
16 mm

Finish
polished

Application
Machinery, Industrial, Automation

Length
Up to 1000 mm

Temperature Resistance
Up to 300C

Tolerance
H7 fit

Tensile Strength
Up to 550 MPa

Manufacturing Standard
IS/BS/DIN

Thread Pitch
4 mm

Acme leadscrew Trade Information

Minimum Order Quantity
1 Number

Delivery Time
7 Days

About Acme leadscrew

An Acme leadscrew is a robust and precision-machined power transmission component designed to convert rotary motion into smooth, controlled linear motion. Featuring a 29 Acme thread profile, it offers superior strength, efficiency, and durability compared to standard thread forms, making it ideal for heavy-duty and industrial applications.

Manufactured from high-quality materials such as carbon steel, alloy steel, or stainless steel, Acme leadscrews ensure excellent load-bearing capacity, wear resistance, and long operational life. The thread design allows for better load distribution and reduced friction, enabling consistent performance even under demanding conditions.

Acme leadscrews are paired with compatible Acme nuts (bronze, polymer, or cast iron) to provide smooth, backlash-controlled movement. They are available in a wide range of diameters, pitches, and lengths, and can be customized as per specific application requirements.

Engineered for Precision and Strength

Manufactured with meticulous attention to quality, our Acme Threaded Leadscrew brings superior precision and strength to industrial applications. It adheres to stringent IS/BS/DIN manufacturing standards, offering enhanced reliability and performance. The H7 fit tolerances and round head design make installation straightforward and secure, supporting a broad array of automation and machinery projects.

Unmatched Durability and Resistance

The leadscrew's mild steel construction, paired with a polished and galvanized finish, provides exceptional corrosion protection and heat resistance up to 300C. This ensures prolonged operational life, making it an ideal solution for challenging environments such as heavy machinery, manufacturing plants, and automation systems.

FAQ's of Acme leadscrew:

Q: How is the Acme leadscrew manufactured to ensure precision and strength?

A: The Acme leadscrew is produced in compliance with IS, BS, and DIN standards, ensuring consistent thread quality and dimensional accuracy. Precision machining and quality inspections guarantee that each leadscrew achieves the specified H7 tolerance fit, robust tensile strength up to 550 MPa, and optimized performance for industrial applications.

Q: What are the primary benefits of using this Acme leadscrew in industrial machinery?

A: This leadscrew delivers precise linear motion, high load capacity, and reliable performance in demanding environments. Its corrosion-resistant, galvanized and polished finish ensures longevity, while its premium-grade mild steel construction supports high tensile strength and temperature endurance up to 300C.

Q: When should you consider using this leadscrew for your application?

A: The leadscrew is especially suitable when your equipment requires accurate, heavy-duty linear actuation, such as in automation, machine tools, or manufacturing lines. Its premium tolerance, strength, and corrosion resistance make it ideal for high-stress, high-temperature, or corrosive industrial settings.

Q: Where can the Acme leadscrew be installed?

A: Due to its versatile round head design and compatibility with standard industrial fittings, this leadscrew can be installed in diverse machinery setups, including CNC machines, industrial equipment, and automated systems across manufacturing facilities in India and globally.

Q: What process is involved in surface treating the leadscrew?

A: After precise machining, each leadscrew undergoes polishing and a galvanization process. This dual surface treatment enhances both the appearance and the resistance to rust and industrial chemicals, ultimately extending operational life under harsh working conditions.

Q: How does the H7 fit tolerance contribute to the leadscrew's performance?

A: The H7 fit provides a high-precision tolerance range, ensuring snug and accurate matings with matching components. This minimizes backlash and wear over time, improving the overall efficiency and reliability of your automation or machinery systems.
